Product Introduction

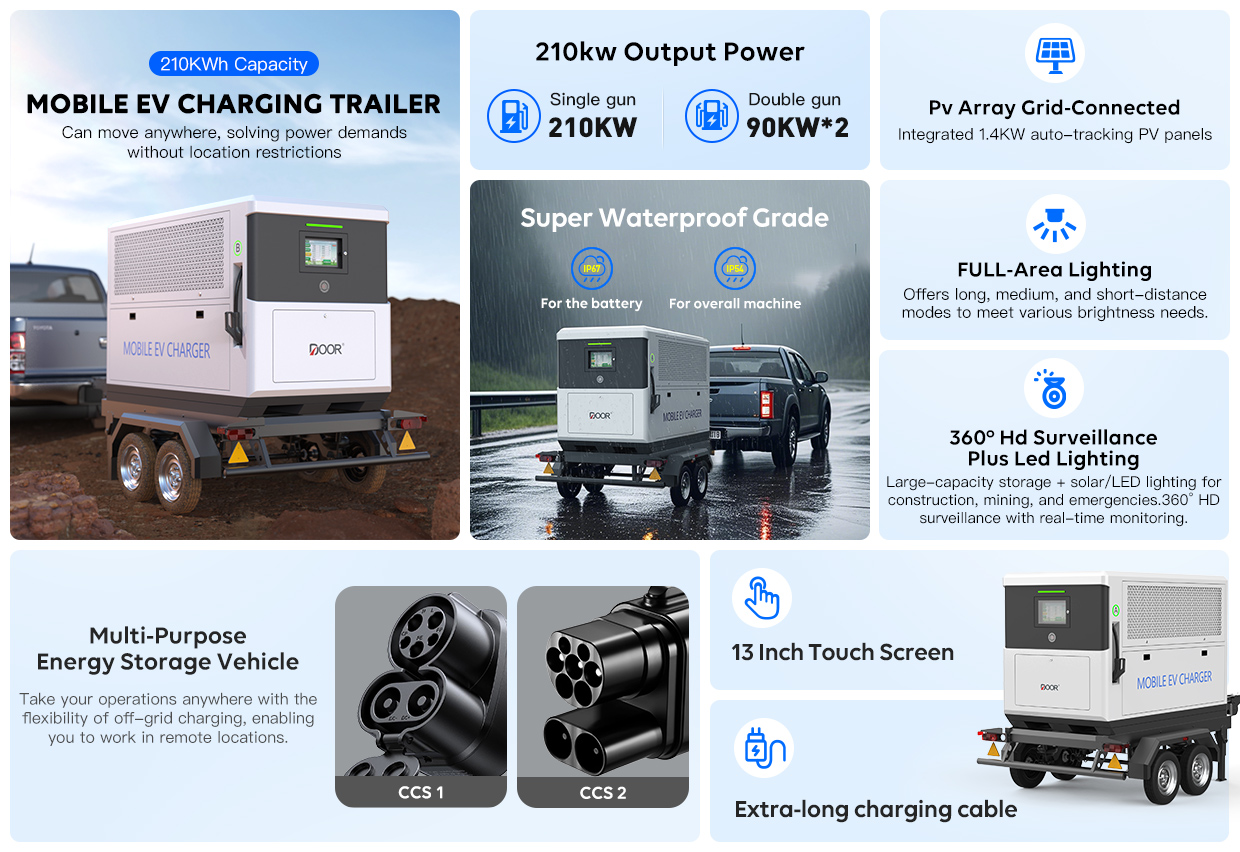

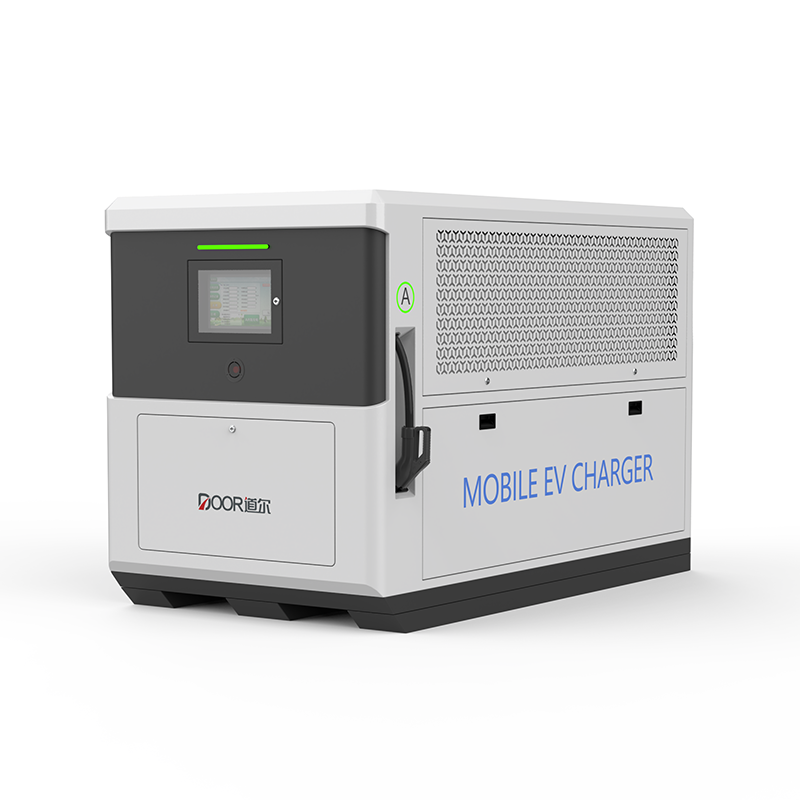

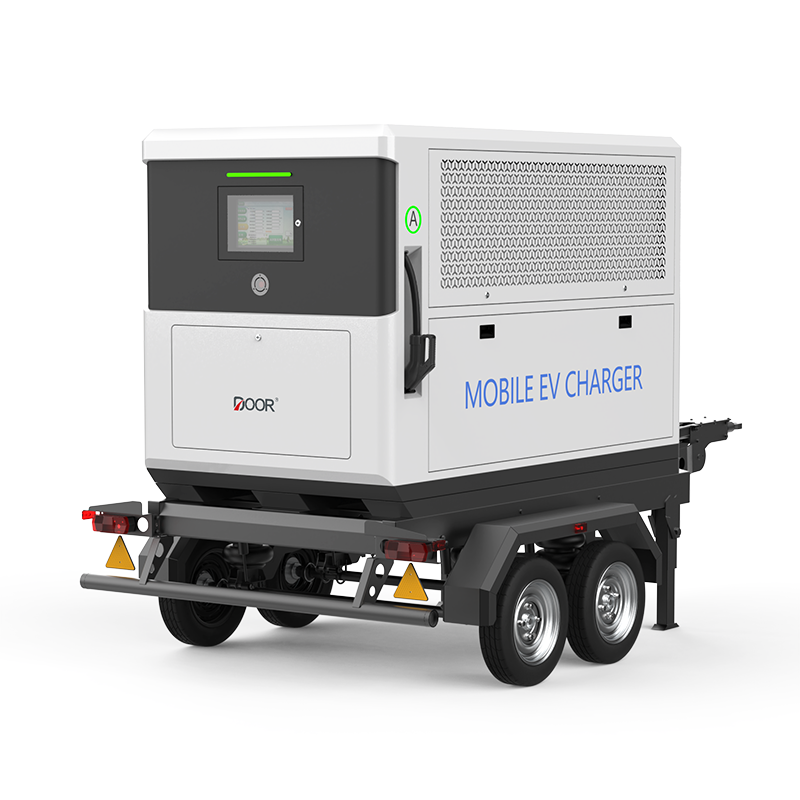

MCP-A

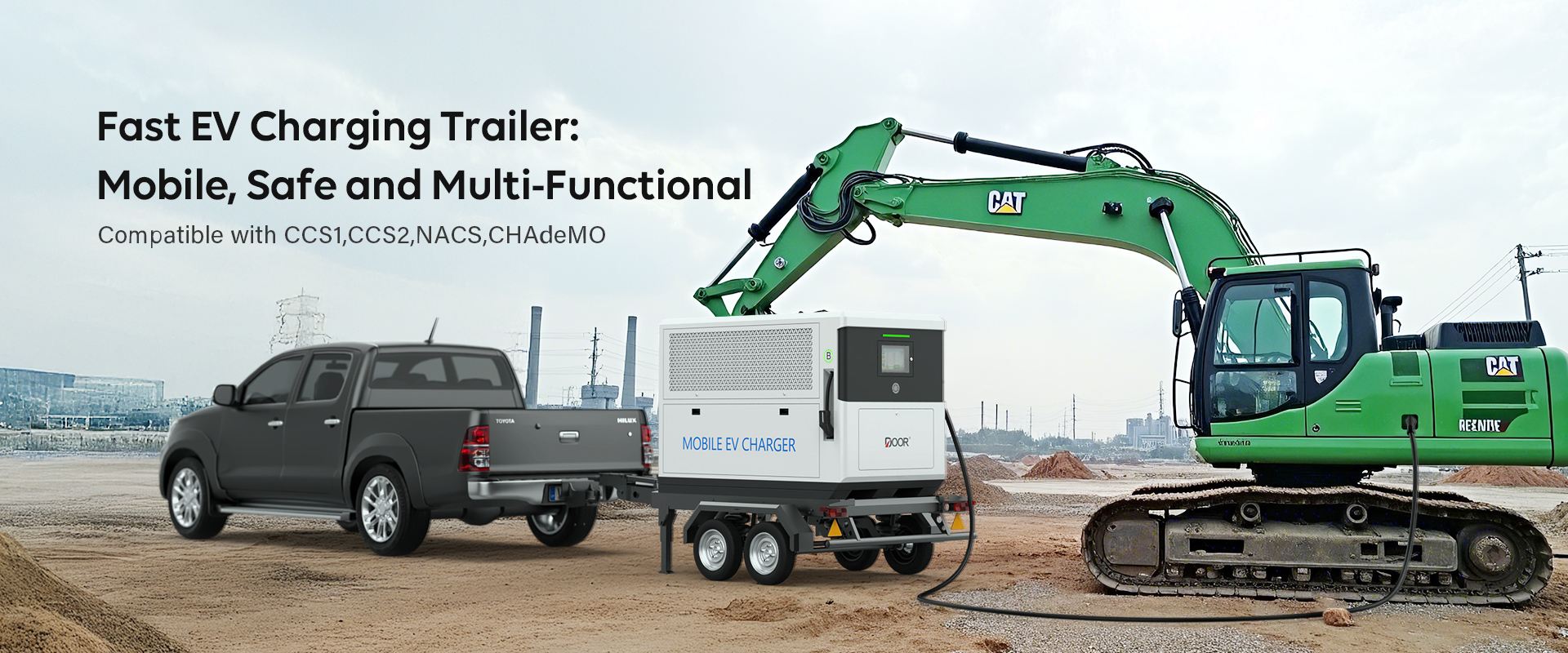

210kWh large battery energy storage capacity, support 180kW output charging power, with fixed placement, The utility model can be used for engineering machinery charging or emergency rescue. The utility model is equipped with an industrial power interface and can also provide the power support of a standby power source for various loads.
Contact Us

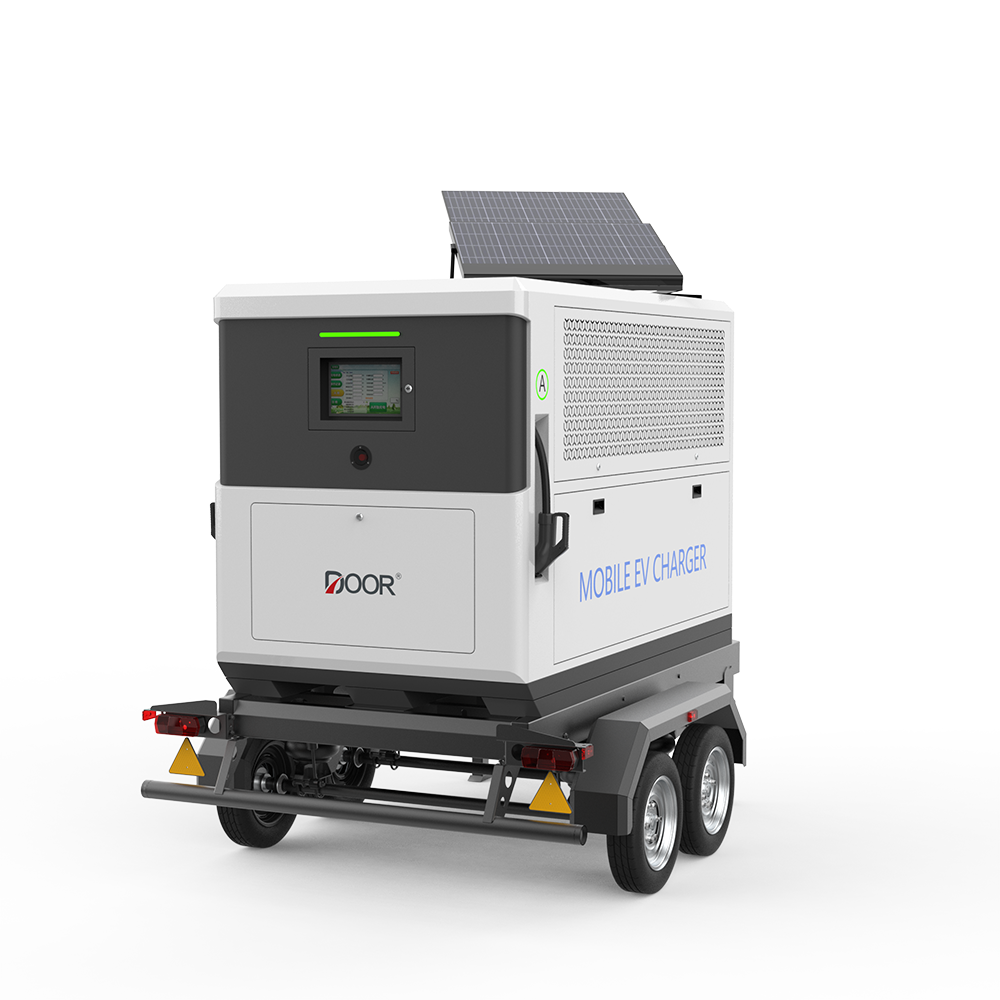

MCP-A-P
It features 180kW charging power with dynamic dual-gun distribution, 210KWh large-capacity energy storage, support for multiple energy replenishment methods, and a bifacial high-efficiency photovoltaic system with a tracking light system that increases power generation capacity by 30%. Equipped with an industrial power charging and discharging interface, it can be used for charging engineering machinery, emergency rescue, or providing emergency power to high-power loads.
Contact Us
MCP-B
It can be carried on box-type small trucks and vans, providing emergency backup power and mobile charging for various types of new energy vehicles. With high-power charging and discharging, flexible mobility, and efficient battery thermal management, it offers efficient and safe services for a wide range of usage scenarios.
Contact Us

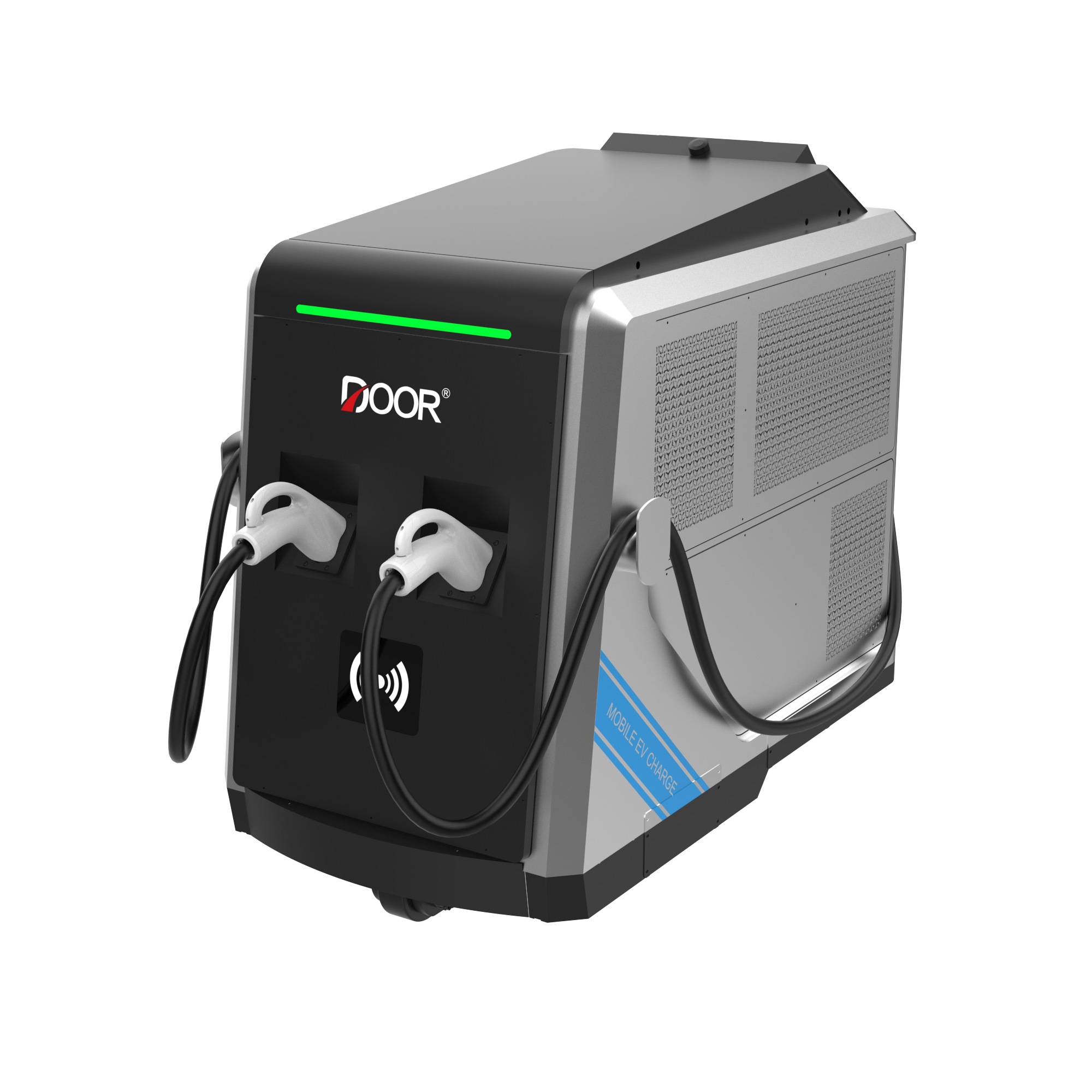

MCP-C

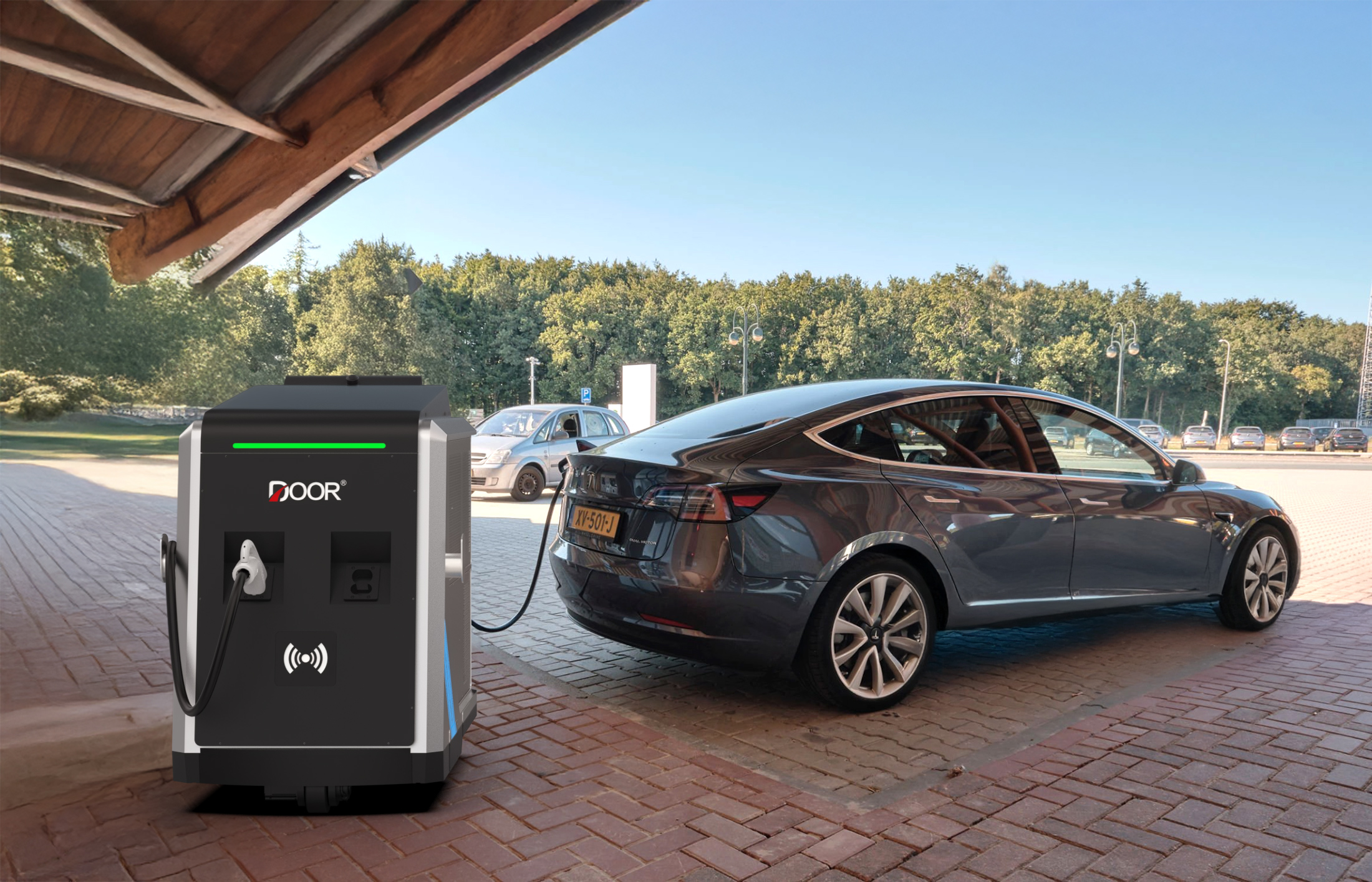

The Push-Type DC fast charger supports a maximum charging power of 80KW and offers various methods to charge battery. It can be flexibly moved in narrow spaces, making it suitable for parking lots, 4S stores, new energy vehicle testing stations, and other indoor and outdoors locations.
Contact Us
MCP-D

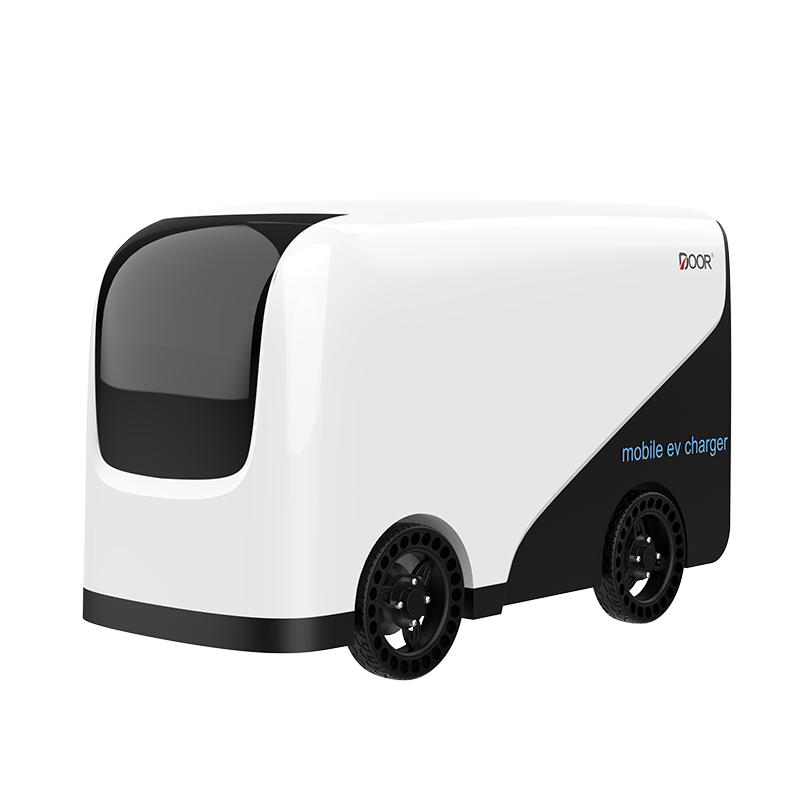

The mobile charging robot offers high flexibility, capable of agile movement in narrow spaces such as crowded parking lots and tight alleys. In addition to mobile charging, it can also provide convenient emergency power supply, emergency lighting, and other energy storage services.
Contact Us

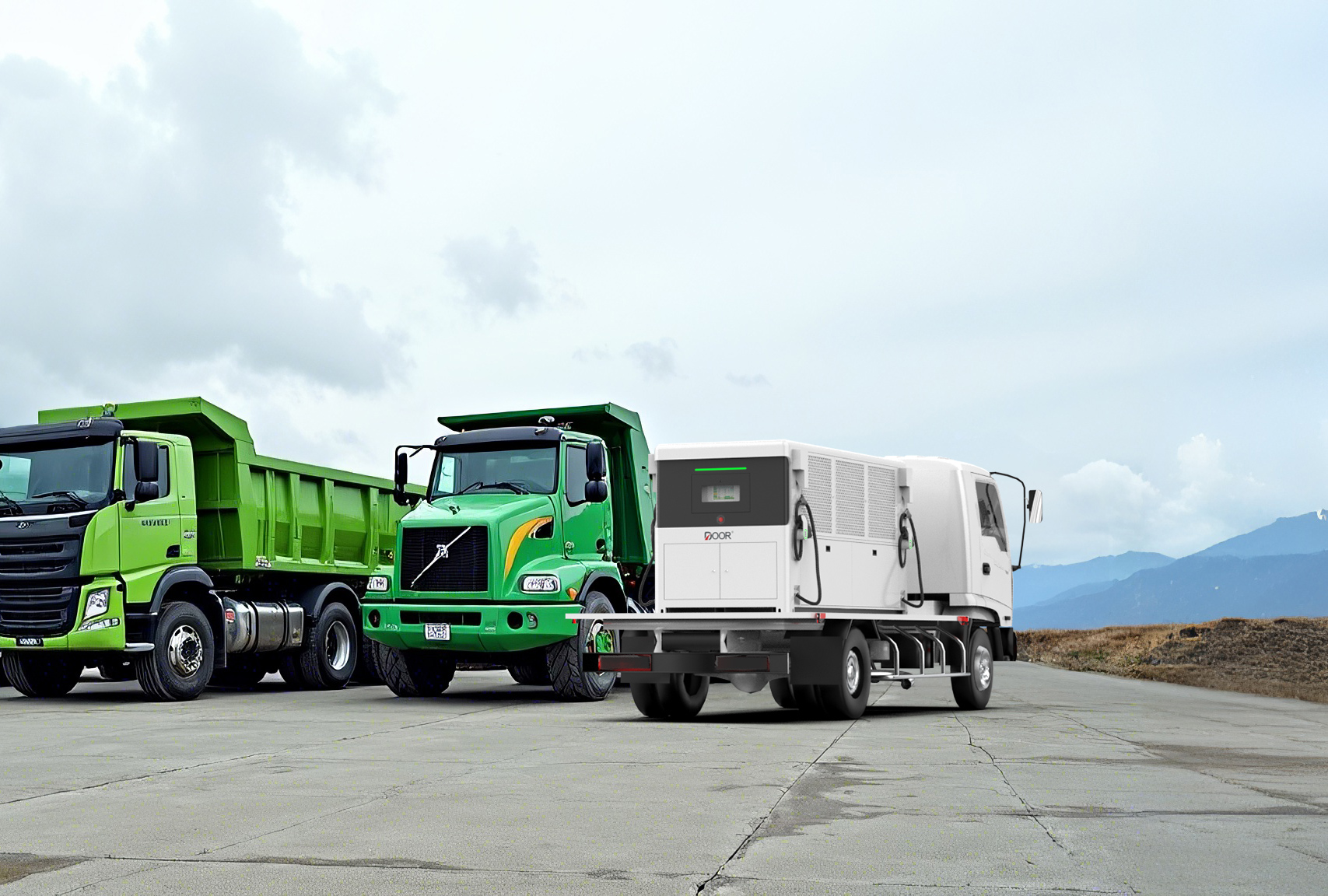

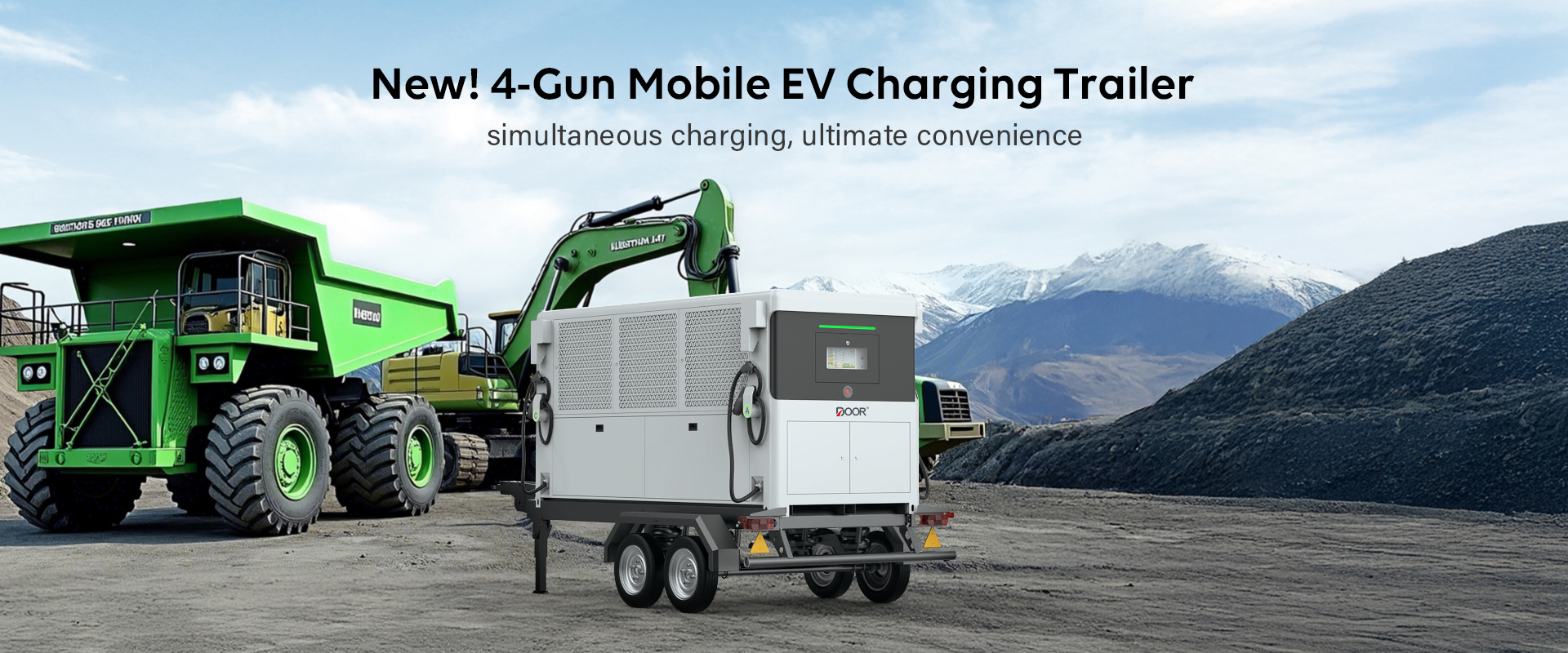

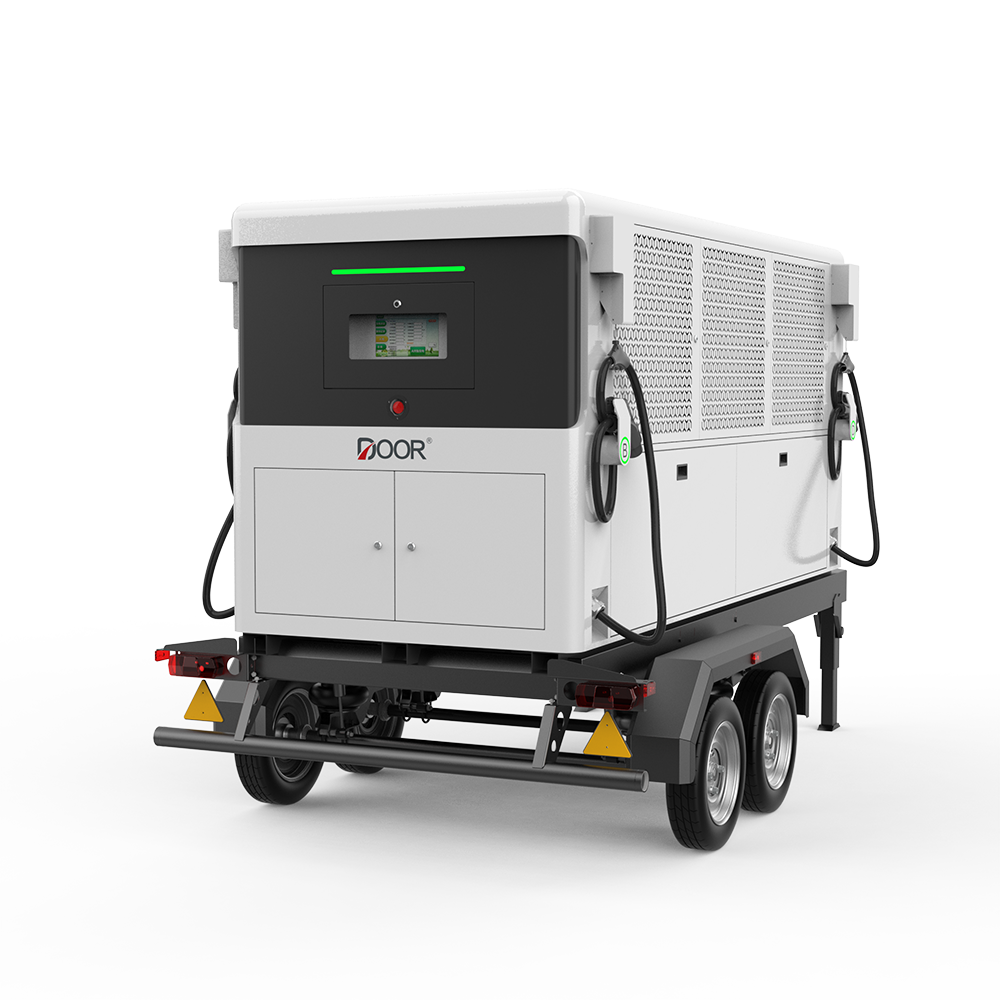

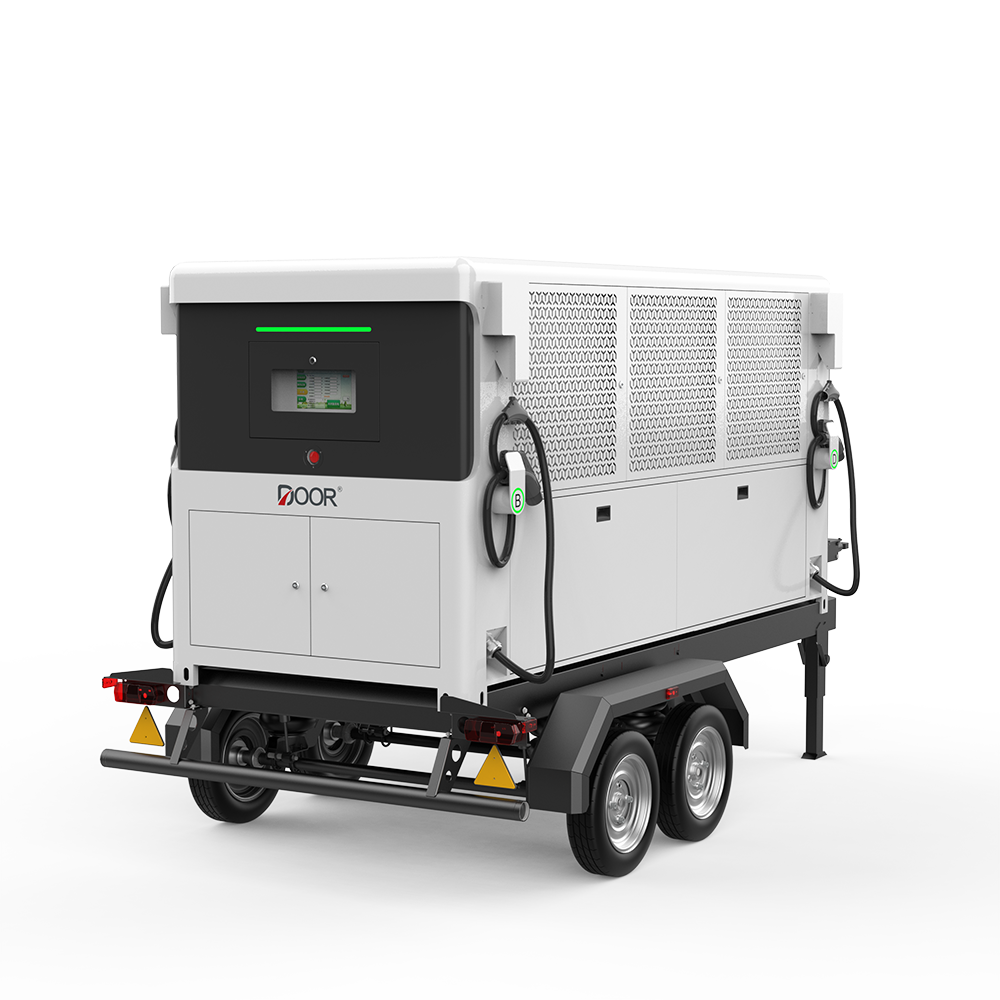

MCP-E
This vehicle-mounted mobile energy storage device boasts a large 420kWh capacity and high power output, supporting EV charging with four guns providing 420kW output power and 300kW load power. It offers multiple fast charging methods and supports up to 500ADC input. It can be used for charging construction machinery, emergency rescue, and providing backup power for various high-power loads.
Contact Us
MCP-E-P
Crawler mobile 420KWh large-capacity energy storage, supports EV charging 4 guns with 420kW output power and 300KW load power supply. It is suitable for various complex unpaved roads and is suitable for mines, construction, and the wild to provide energy replenishment and emergency backup power for large and medium-sized electric machinery.
Contact Us

Video introduction

When innovation and reliability are perfectly combined, we create a true "charging pioneer".
Connect
Freedom of movement
It can move freely to any place, without being restricted by
the scene or environment, and solve the power demand.
Fast charging
210kWh large capacity, support 180kW charging power output, 10 minutes charging 200KM
Power supply interface
Provide industrial power outlet, meet indoor and outdoor
emergency or disaster relief and other standby power source electricity demand
Multi-scenario applicability
It can be carried on small trucks, vans, and with trailer towing.
Multiple safety protection
High-reliability thermal management and fire protection system design.

Application scenarios

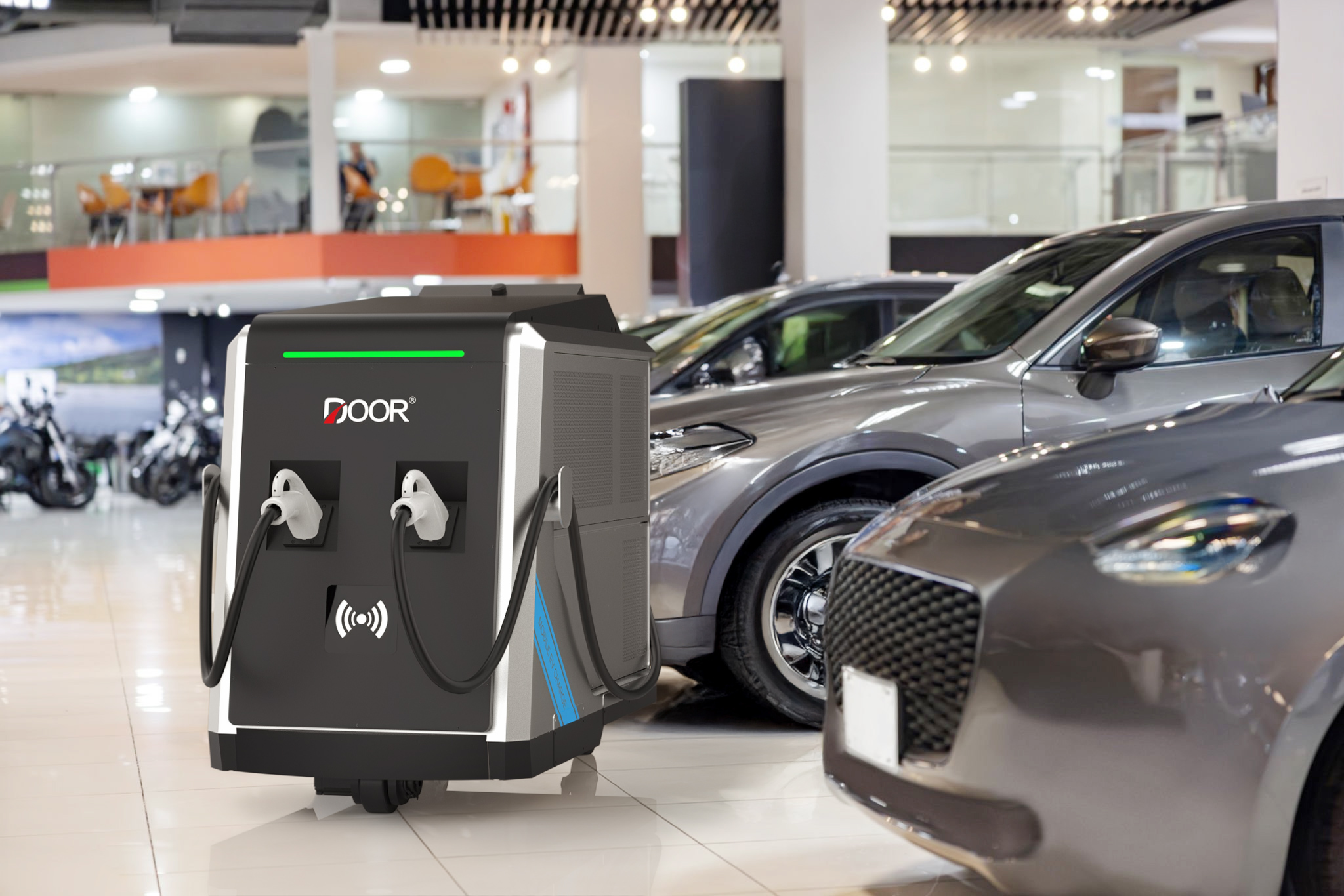

4S charging
Contact Us
Disaster Emergency Response
Contact Us

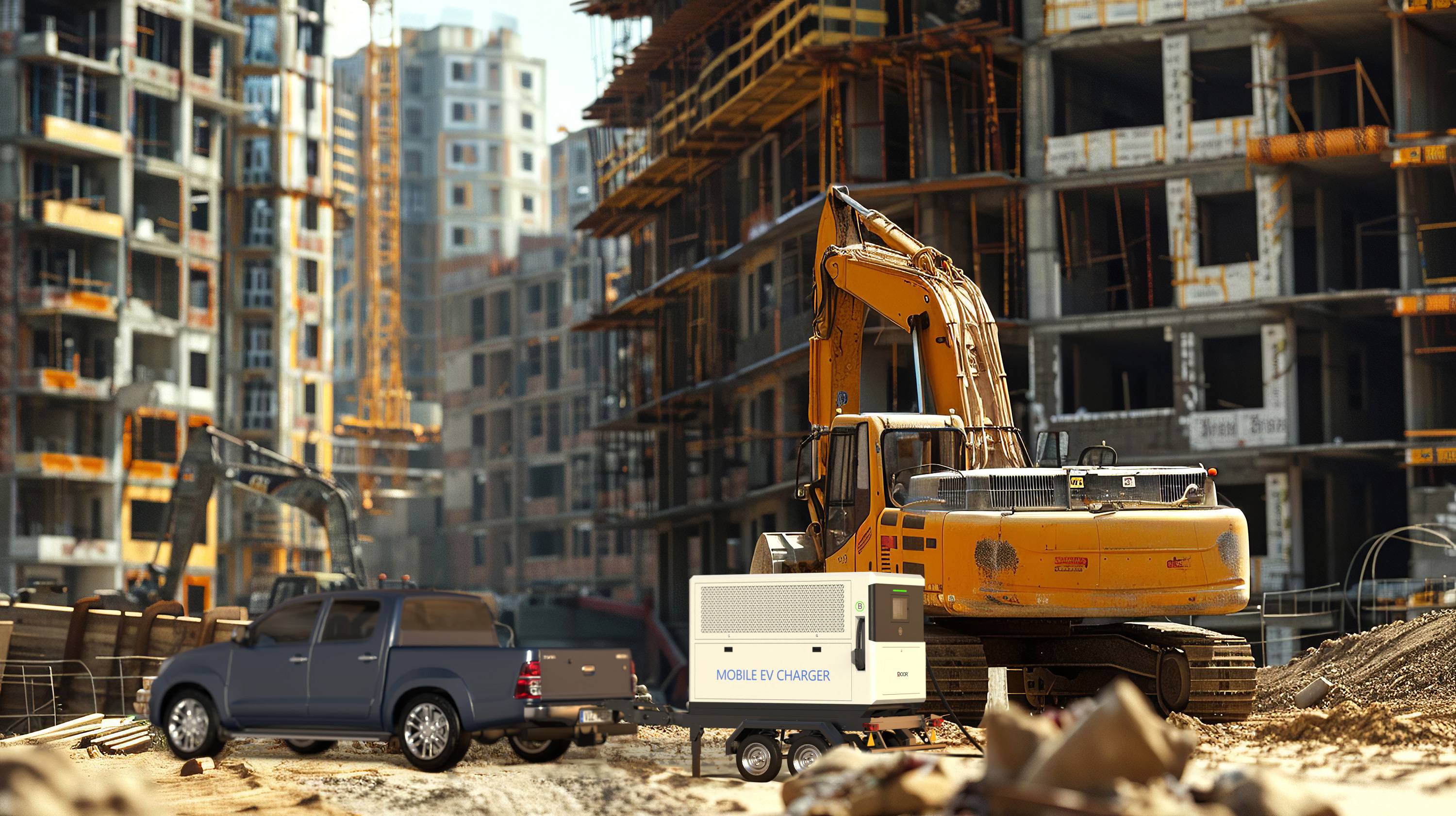

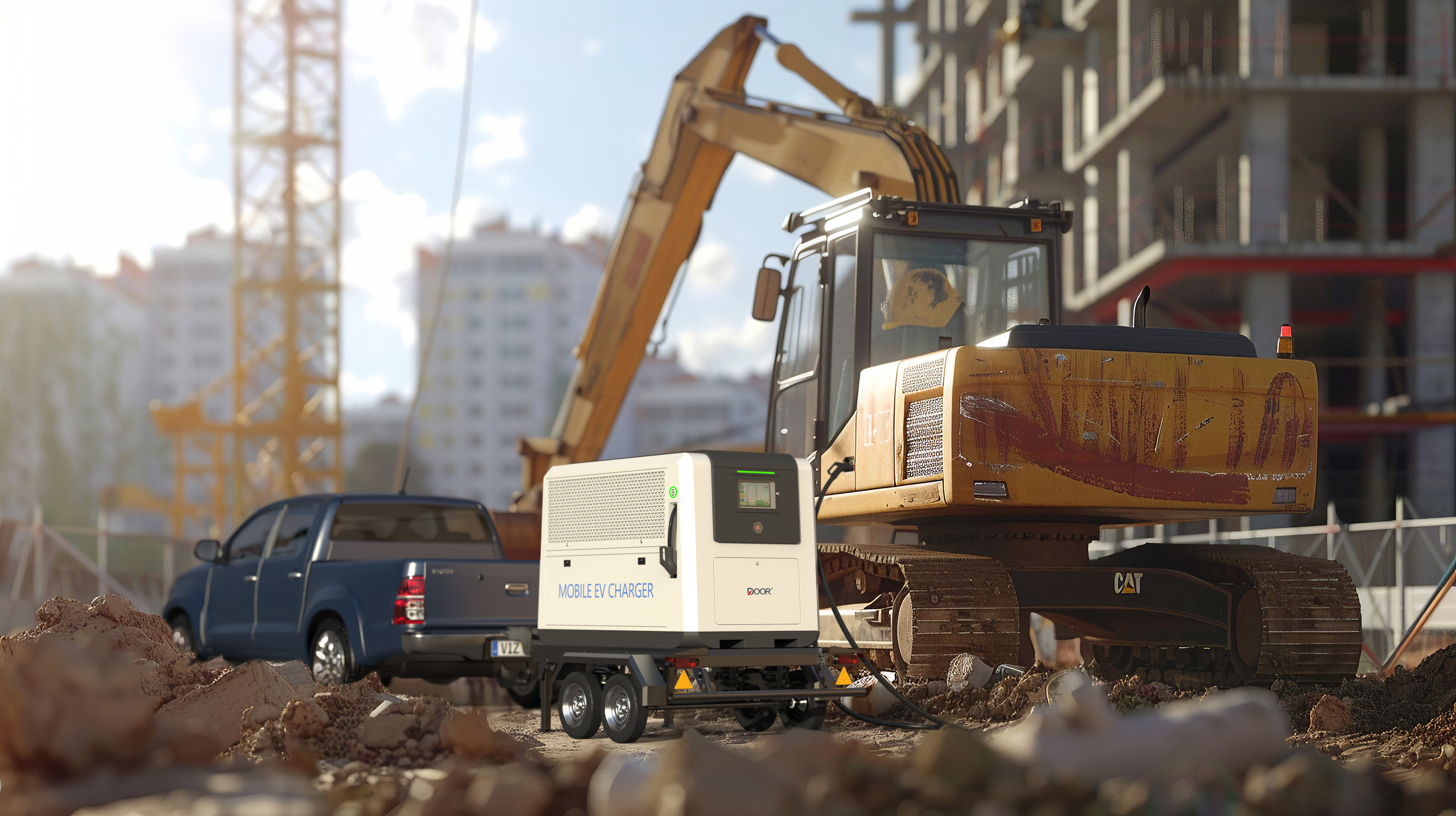

Engineering charging
Contact Us
Team charging
Contact Us
Parking lot charging
Contact Us
Charging at service area
Contact Us
On-board charging
Contact Us

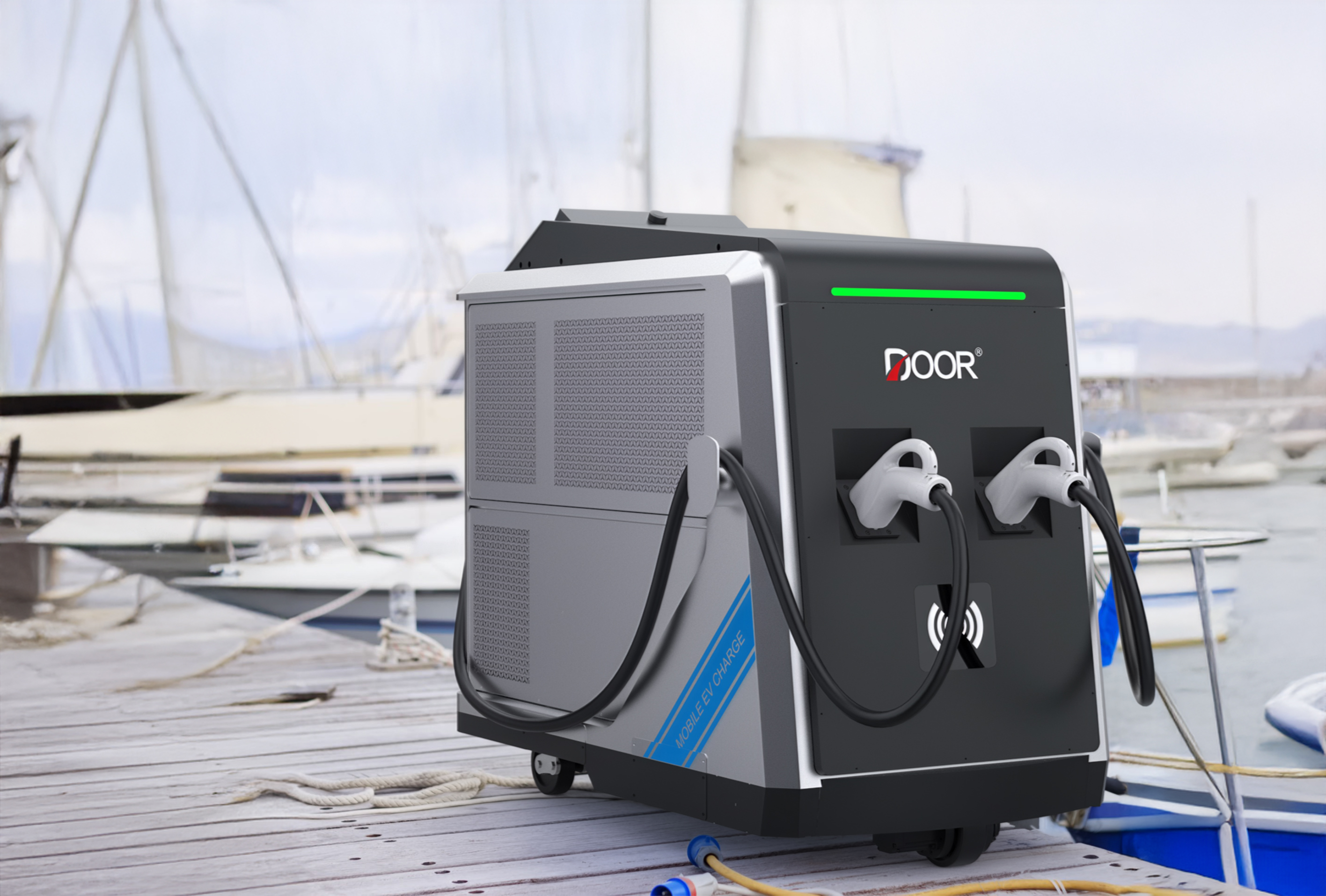

Ship charging
Contact Us

Technical Parameters


model MCP-A MCP-A-P MCP-B MCP-C MCP-D MCP-E
Item Technical Parameters Technical Parameters Technical Parameters Technical Parameters Technical Parameters Technical Parameters
Battery capacity 210kWh 210kWh 100kWh 40kWh 104kWh 420kWh
attery voltage 700Vdc 700Vdc       700Vdc
Charging power 90KW*2(Double gun)180KW(/Single gun) 180KW 90KW 80KW 100KW 420KW/4枪
Charing gun type CCS1/CCS2 CCS1/CCS2 CCS1/CCS2 CCS1/CCS2 CCS1/CCS2 CCS1/CCS2
Voltage range 200~1000Vdc 200~1000Vdc 200~1000Vdc 200~1000Vdc 200~1000Vdc 200~1000Vdc
Communication protocol OCPP1.6J OCPP1.6J OCPP1.6J OCPP1.6J OCPP1.6J OCPP1.6J
AC output 100KW(380V-125A/63A,220V-16A/Industrial sockets) 100KW 100KW   100KW 300KW
DC input 250A(CCS1/CCS2) 250A(CCS1/CCS2) 250A(CCS1/CCS2) 72A(CCS1/CCS2) 250A(CCS1/CCS2) 500A/
PV input   1.4KW 90kw
AC input 100KW(125A/63A/Industrial sockets) 100KW 100KW 40KW 100KW 300KW
0perating temperature range -20~65C° -20~65C° -20~65C° -20~65C° -20~65C° -20~65C°
Degree of protection IP54/IP67 IP54 Overall machineIP54//energy storageIP67 Overall machine IP54 IP55 IP54
Battery cycle life ＞5000(90%DOD，80%EOL) ＞5000(90%DOD，80%EOL) ＞5000/Cycles(90%DOD，80%EOL) ＞7000/cycles(90%DOD，80%EOL) ＞8000/cycles(90%DOD，80%EOL) ＞5000(90%DOD，80%EOL)
Thermal managemen Liquid cooling Liquid cooling Liquid cooling   Liquid cooling Liquid cooling
HMI 13-Inch touchscreen 13-Inch touchscreen 13-Inch touchscreen     13-Inch touchscreen
Dimension (L*W*H) 2350*1400*1600mm 2350*1400*1600mm 1950*1100*1500mm 1701*988*1408mm 2050*900*1500mm 3250*1350*1500mm
Weight ＜2800Kg ＜2900Kg ＜1400Kg 960Kg ＜1500Kg ＜4500Kg
Housing material Sheet metal/C4/Antimicrobial grade C4 Sheet metal/C4/Antimicrobial grade C4 Sheet metal/C4/Antimicrobial grade C4     Sheet metal/C4/Antimicrobial grade C4
Maximum climbing grade   ＜5% 20%（11.3)
Minimum ground clearance 100mm
Speed 3km/h 20km/h
Autonomous driving level   L4
more

Application scenarios

Roadside assistance
It can be carried on box-type small trucks and vans, providing emergency backup power and mobile charging for various types of new energy vehicles. With high-power charging and discharging, flexible mobility, and efficient battery thermal management, it offers efficient and safe services for a wide range of usage scenarios.
Construction power supply
210kWh large battery energy storage capacity, support 180kW output charging power, with fixed placement, The utility model can be used for engineering machinery charging or emergency rescue. The utility model is equipped with an industrial power interface and can also provide the power support of a standby power source for various loads.

Difference Comparison

MCP-A
connect
MCP-A-P
connect
MCP-B
connect
Battery capacity
210kWh
210kWh
100kWh
Charging power
90KW*2(Double gun)180KW(Single gun)
180KW
90KW
Charing gun type
CCS1/CCS2
CCS1/CCS2
CCS1/CCS2
Voltage range
200~1000Vdc
200~1000Vdc
200~1000Vdc
Thermal managemen
Liquid cooling
Liquid cooling
Liquid cooling
HMI
13-Inch touchscreen
13-Inch touchscreen
13-Inch touchscreen
AC output
100KW
100KW
100KW
DC input
250A(CCS1/CCS2)
250A(CCS1/CCS2)
250A(CCS1/CCS2)
Dimension (L*W*H)
2350*1400*1600mm
2350*1400*1600mm
1950*1100*1500mm
Weight
＜2800Kg
＜2900Kg
＜1400Kg

Application scenarios

Construction machinery charging
This vehicle-mounted mobile energy storage device boasts a large 420kWh capacity and high power output, supporting EV charging with four guns providing 420kW output power and 300kW load power. It offers multiple fast charging methods and supports up to 500ADC input. It can be used for charging construction machinery, emergency rescue, and providing backup power for various high-power loads.
Construction machinery charging
Crawler mobile 420KWh large-capacity energy storage, supports EV charging 4 guns with 420kW output power and 300KW load power supply. It is suitable for various complex unpaved roads and is suitable for mines, construction, and the wild to provide energy replenishment and emergency backup power for large and medium-sized electric machinery.

Difference Comparison

MCP-E
connect
MCP-E-P
connect
Battery capacity
420kWh
420kWh
Attery voltage
700Vdc
700Vdc
Charging power
420KW/4枪
420KW/4枪
AC output
300KW
300KW
Maximum slope
23°
Maximun speed
5km/h
HMI
13-Inch touchscreen
13-Inch touchscreen
Dimension (L*W*H)
3250*1350*1500mm
3250*1350*1500mm
Weight
＜4500Kg
＜8500Kg
Portable

Application scenarios

Flexible mobility
The Push-Type DC fast charger supports a maximum charging power of 80KW and offers various methods to charge battery. It can be flexibly moved in narrow spaces, making it suitable for parking lots, 4S stores, new energy vehicle testing stations, and other indoor and outdoors locations.
Flexible mobility
The Push-Type DC fast charger supports a maximum charging power of 80KW and offers various methods to charge battery. It can be flexibly moved in narrow spaces, making it suitable for parking lots, 4S stores, new energy vehicle testing stations, and other indoor and outdoors locations.
Mobile Storage and EV Charger Robot
The mobile charging robot offers high flexibility, capable of agile movement in narrow spaces such as crowded parking lots and tight alleys. In addition to mobile charging, it can also provide convenient emergency power supply, emergency lighting, and other energy storage services.
Optional button
Flexible mobility
The Push-Type DC fast charger supports a maximum charging power of 80KW and offers various methods to charge battery. It can be flexibly moved in narrow spaces, making it suitable for parking lots, 4S stores, new energy vehicle testing stations, and other indoor and outdoors locations.
Optional button

Difference Comparison

MCP-C
connect
MCP-D
connect
Battery capacity
40kWh
104kWh
Charging power
80KW
100KW
Charing gun type
CCS1/CCS2
CCS1/CCS2
Voltage range
200~1000Vdc
200~1000Vdc
DC input
72A(CCS1/CCS2)
250A(CCS1/CCS2)
AC input
40KW
100KW
Maximum climbing grade
＜5%
20%（11.3)
Battery cycle life
＞7000次/cycles(90%DOD，80%EOL)
＞8000次/cycles(90%DOD，80%EOL)
Dimension (L*W*H)
1701*988*1408mm
2050*900*1500mm
Weight
960Kg
＜1500Kg

Blogs

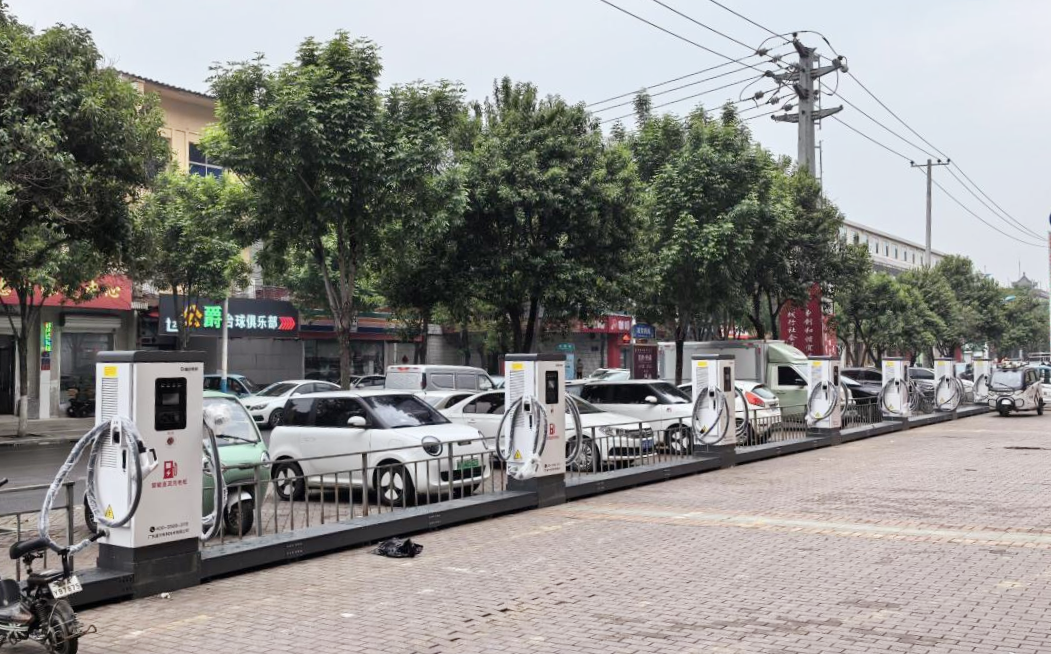

DOOR Energy Powers Green Mobility in Luancheng, Shijiazhuang, Hebei
